Rail Grinding Wheel MRC-S150070-D Dual-Step Bore for Geismar/Robel 150 Model Grinders
- Model
- MRC-S150070-D
Item specifics
- Category
- Rail Grinder
- Process
- Hot Pressing
- Materials
- luminum Matrix+ Zirconia+ Glass Fiber
- Hardness-Material Identification
- Z/A F16Y5B
- Granularity
- 20 Grit
- Packaging
- Wooden Case
- Certification
- ISO
- Business Model
- Customization
- Heavy Haul Railway
- Axle Load Capacity ≥ 30t
Review
Description

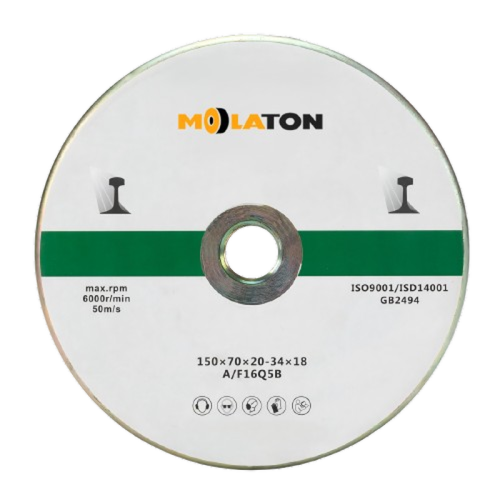

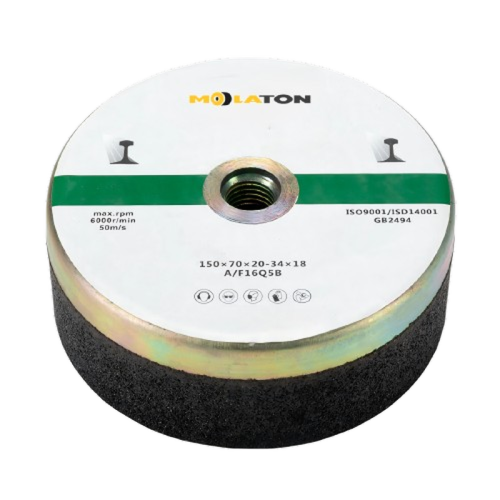

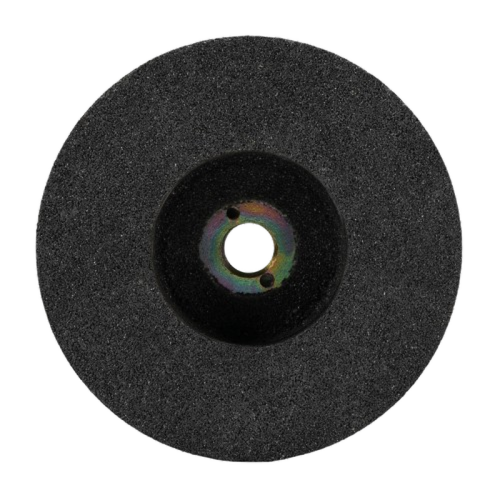

Molaton RailCare-S150070-D Rail Grinding Wheel Product Description
Molaton RailCare-S150070-D: Dual-Step Bore for Zero-Runout Turnout Grinding
The Molaton RailCare-S150070-D a high-precision 150×70mm grinding wheel engineered for direct mounting on Geismar and Robel 150 Model handheld grinders. It features a dual-step bore with outer diameter 20mm, inner diameter 34mm, and step width 18mm, ensuring perfect concentricity (<0.05mm) without flanges or adapters.
This design eliminates vibration and runout during operation, enabling precise edge control on switch points and frogs in demanding field conditions. Reinforced with glass fiber and featuring a 20-grit zirconia-alumina (ZA/A) resin-bond abrasive, the wheel delivers consistent cutting performance and extended service life at 50 m/s.
Ideal for urban rail, metro systems, and maintenance teams requiring accuracy and reliability in turnout repair applications.
Molaton RailCare-S150070-D Rail Grinding Wheel Specifications
Technical Specifications | ||
| Parameter | Value | |
| OD×Thickness×Bore | 150x70x20-34x18mm | |
| Gross Weight | 2.62 kg | |
| Max Speed | 50m/s | |
Bond | Resin, Glass Fiber Reinforced | |
Compatible Systems | Geismar or Robel | |
Key Features & Benefits
✅ Dual-Step Arbor: 34×18mm bore matches OEM spindle geometry – zero runout installation
✅ Flange-Free Setup: Reduces changeover time by 50% vs. traditional clamped wheels
✅ Turnout-Optimized: Ideal for tight-radius switch components and crossing nose repair
✅ Low Vibration: Balanced construction minimizes hand-arm vibration (HAVS compliant)
✅ Cost-Efficient: Standard size with high cycle life – lowers cost per meter ground
✅ Field-Proven: Widely used in European and Asian rail maintenance fleets
