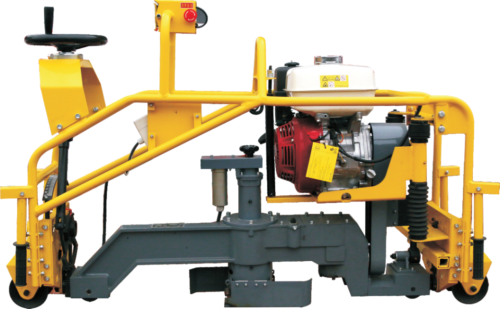

Rail Grinder RCG-C65: CNC Intelligent Copying Rail Grinder
- Model
- RCG-C65
Review
Description
Overview
The Rail Grinder RCG-C65 is a fully upgraded intelligent copying machine based on the proven NGM-6.3 II platform. It features a CNC feed unit that enables precise, automated control of grinding depth and path—eliminating human error and protecting rails from “over-grinding.”
Powered by an imported Honda GX270 U2 gasoline engine (6.3 kW), it delivers consistent performance for restoring rail profiles on mainlines. The machine efficiently removes weld irregularities, rolling burrs, surface defects, and corrugation wear on 60–65 kg/m rails.
With a grinding wheel stroke of 59 mm, profile track of 1010 mm, and feed accuracy of ±0.01–0.5 mm, the RCG-C65 ensures high precision in national railway maintenance. Its robust design and intelligent control make it ideal for professional crews demanding asset protection and operational efficiency.
Key Features
⚪ Equipped with a CNC feed unit for automated, intelligent, and precise control over grinding depth and feed, eliminating manual errors.
⚪ The upgraded copying system ensures the grinding head closely follows the rail profile, delivering uniform and conformal high-precision repair on welds, corrugation, etc.
⚪ Intelligent control calculates and limits metal removal, effectively preserving the structural integrity of the rail, extending service life, and reducing maintenance costs.
⚪ The internal combustion engine delivers robust and reliable field performance; optimized ergonomics make operation less labor-intensive, mobility easier, and construction more efficient.
Tech Sheet
Category | Technical Parameter | Specification / Value | ||||
Power System | Power Source | Imported Honda GX270 UT2 Gasoline Engine | ||||
| Rated Power/Speed | 6.3 kW / 3600 rpm | |||||
Intelligent Control System | Microcontroller Speed | 16 MIPS | ||||
| Display | LCD, Resolution 128 × 64 DOTS | |||||
Smart Alerts | Air filter replacement alarm, Engine oil change alarm | |||||
Core Grinding Performance | Max. Grinding Wheel Stroke | 59 mm | ||||
Copying Wheelbase | 1010 mm | |||||
Copying Pivot Angle | ±90° | |||||
Inching Feed Accuracy | 0.01 – 0.5 mm (Instant Settable) | |||||
Operational & Electrical Parameters
| Operating Temperature | -40 ℃ to +70 ℃ | ||||
Magneto Output | ~12 V | |||||
External Charging Supply | AC 220 V | |||||
Timing & Data Logging | Real-time Timer Display | Hour, Minute, Second | ||||
Cumulative Timer Display | Hour | |||||
Timer Data Output | Year, Month, Day, Hour, Minute | |||||
Physical Dimensions & Weight | Overall Dimensions (L×W×H) | 1565 × 550 × 973 mm | ||||
Net Weight | 98 kg | |||||
