RAIL PROFILE MEASURING INSTRUMENT

Model: SPM

Review

Description

Overview

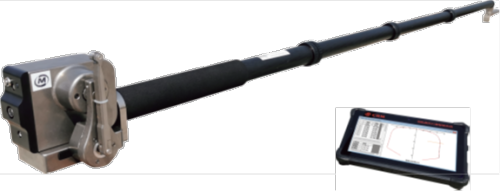

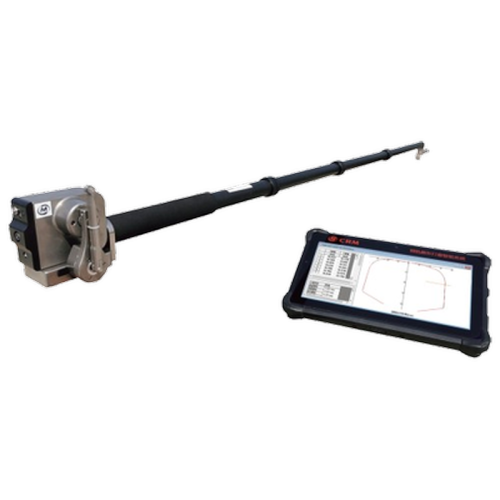

The SPM portable rail profile gauge is a rail cross-section profile measurement and analysis device developed by China Railway Materials Operation and Maintenance Technology Co., Ltd. It can accurately measure rail profiles and calculate key parameters such as rail side wear, vertical wear, superelevation, track gauge, equivalent conicity, and wheel-rail contact characteristics. When used with its dedicated tablet PC and proprietary software, it enables real-time profile analysis and data management.

Basic Parameters

Key Featuers

Profile Measurement

Used for measuring rail profiles on tracks, as well as switch points, stock rails, and crossing noses in turnout areas.

Profile Analysis

Capable of calculating vertical and lateral rail wear, and analyzing wheel-rail equivalent conicity and contact compatibility.

Profile Deviation Correction

The software automatically corrects profile deviations caused by installation and positioning errors.

Automatic Data Upload

Measurement data can be automatically uploaded in batches to the WRPS database, facilitating centralized profile storage and management.

Technical Features

⚪ Detachable Measuring Head & Carbon Fiber Telescopic Rod: Ensures high positioning accuracy, portability, and ease of carrying.

⚪ Dual Wireless/Wired Connection: Offers flexible and convenient on-site operation.

⚪ Side-Insert Aviation Connector: Provides highly reliable data cable connection.

⚪ Hollow-Shaft Encoder & Full-Titanium Alloy Construction: Delivers a compact structure with high strength and excellent corrosion resistance.

⚪ Comprehensive Software Suite: Features data upload and management, rail wear calculation, and wheel-rail contact characteristic analysis.Sample Content

Reports
