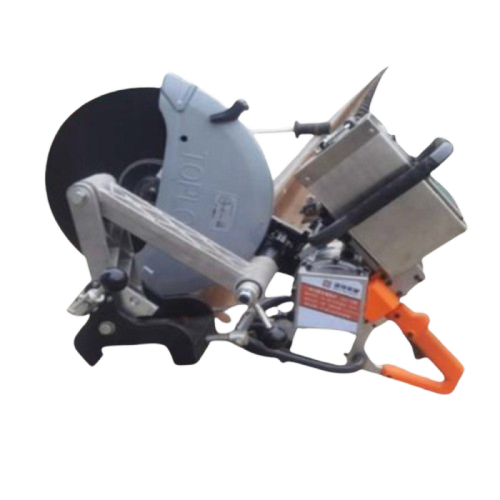

RailwayCare RCS-L50: Lithium-Powered Rail Saw

Constructed entirely from high-strength steel, the unit ensures structural integrity during high-torque cutting cycles. Power is supplied by a 72V high-capacity lithium-ion battery pack, driving a 5.0 kW brushless DC external rotor motor—delivering constant speed and torque without voltage sag, even under full load.

Cutting force is transmitted via a multi-wedge belt drive system, minimizing energy loss and reducing mechanical wear compared to direct-drive or gear-coupled alternatives. The 400 mm abrasive disc operates at optimized peripheral speed, enabling clean, burr-free cuts on rails up to 75 kg/m.

A centralized electronic control module governs motor operation and provides comprehensive safety protections:

●   Overcurrent Protection (OCP)

●   Overvoltage Protection (OVP)

●   Undervoltage Lockout (UVP)

●   Overtemperature Shutdown (OTP)

Vibration is actively suppressed through engineered damping mounts, improving operator comfort and tool longevity. The entire assembly meets IP45 protection rating, resisting dust ingress and water spray from any direction—critical for outdoor, all-weather deployment.

Field performance confirms reliable operation down to –30°C, with a single charge supporting approximately five full cuts on 60 kg/m rail. At just ≤30 kg total weight, the RCS-L50 is easily transported and deployed by two personnel, eliminating the need for external power or support equipment.

This machine represents a modern shift toward clean, efficient, and operator-safe rail infrastructure maintenance.

⚪  Equipped with a super-powerful brushless DC motor delivering a maximum power exceeding 5 kW, enabling high-efficiency cutting (completing a 60 kg/m rail cut in less than 120 seconds).

⚪  Features a 72V lithium-powered DC control system with safety protections against overcurrent, overvoltage, undervoltage, and overtemperature.

Incorporates effective vibration damping.

⚪  The entire machine is waterproof and exhibits excellent low-temperature resistance, capable of normal operation in extremely cold conditions down to -30°C.

⚪  Offers extended endurance, capable of performing approximately 5 cuts (on 60 kg/m rail) on a single charge.
