Zirconia alumina (ZA) is the most technically sophisticated abrasive grain used in railway grinder wheel manufacturing. Its defining characteristic — self-sharpening behavior through controlled micro-fracturing — enables a level of grinding performance that conventional abrasives like brown fused alumina and silicon carbide cannot match. But understanding how this property works, and how it interacts with the bond system in a hot-pressed railway grinder wheel, is essential for making informed procurement decisions.
Zirconia alumina is a composite abrasive consisting of aluminum oxide (Al₂O₃) and zirconium oxide (ZrO₂), typically in ratios of 60:40 to 75:25. The two-phase structure — with tiny zirconia crystallites dispersed within an alumina matrix — creates internal stress boundaries that fracture in a controlled manner under grinding pressure.
This is fundamentally different from the brittle fracture behavior of brown fused alumina, where grains shatter into large fragments with unpredictable cutting edge geometry. Zirconia alumina's micro-fracturing mechanism ensures that every fracture event produces a fresh, sharp cutting edge — effectively self-sharpening the railway grinder wheel's working surface throughout its service life.
The self-sharpening mechanism operates through a four-stage cycle during grinding:
This cycle repeats continuously throughout the railway grinder wheel's service life. A single zirconia alumina grain can undergo dozens of micro-fracturing events before it is finally consumed or ejected from the bond.
Each abrasive grain type produces different behavior in a railway grinder wheel:
The combination of zirconia alumina abrasive grains with hot-pressed bond technology creates a railway grinder wheel where each component enhances the other:
Hot-pressed bonding provides stronger grain-to-bond adhesion than cold pressing. This means each zirconia alumina grain remains in place longer, undergoing more micro-fracturing cycles before being ejected. The precise bond density achieved by hot pressing ensures that as grains wear, the bond erodes at a rate that matches the grain fracture frequency — never too fast (premature grain loss) or too slow (glazing). Hot pressing allows pore structure to be designed independently of grain content. Proper porosity ensures that micro-fractured grain fragments are efficiently evacuated from the grinding interface, preventing clogging.
The most compelling evidence for zirconia alumina's self-sharpening advantage comes from the Shuohuang Railway (朔黄铁路), a 594 km heavy-haul coal transport corridor where Molaton hot-pressed zirconia alumina railway grinder wheel products were deployed on Harsco 96 grinding vehicles:
The self-sharpening behavior of zirconia alumina was the critical factor in maintaining consistent Ra values across the full 20,000 km campaign without requiring mid-project wheel specification changes.
One of the most valuable properties of zirconia alumina in railway grinder wheel applications is its lower heat generation compared to other abrasive grains. The micro-fracturing mechanism produces smaller, finer chips than the macro-fracturing of brown fused alumina — and smaller chips carry away less frictional heat.
Lower grinding temperature means:
This makes zirconia alumina the safest choice for grinding premium rails where maintaining the head-hardened layer is essential for long rail life.
Despite its price premium over brown fused alumina (typically 40–60% higher raw material cost), zirconia alumina is the most cost-effective choice for rail grinding when evaluated on a total-cost-of-operation basis:
For any grinding operation where track possession time has monetary value, zirconia alumina railway grinder wheel products deliver the lowest total cost.
Not all zirconia alumina railway grinder wheel products are the same. Key differentiators include:
Molaton's engineering team can recommend the optimal zirconia alumina formulation based on your specific vehicle type, rail grade, and grinding objectives.
The self-sharpening capability of zirconia alumina makes it the only rational choice for railway grinder wheel applications where quality, consistency, and total cost of operation matter. Its micro-fracturing behavior delivers the unique combination of high removal rate, excellent surface finish, and extended wheel life — a combination that no other abrasive grain system can match in the rail grinding application.
When combined with hot-pressed bond technology, as in Molaton's manufacturing process, the result is a railway grinder wheel that outperforms alternatives across every measurable dimension while delivering 30–50% cost savings compared to imported equivalents.
Additional photographs from Molaton's railway grinder wheel field operations and manufacturing, providing more visual evidence of product quality and grinding performance. Contact RailwayCare today to learn how our expert rail grinding services can enhance the performance and safety of your railway infrastructure. Let us help you keep your trains running smoothly and safely. •Product list page: www.railwaycare.com • Email: simon.wang@railwaycare.com • Phone : +86 15072332788 Your tracks are our priority. Choose RailwayCare for reliable rail maintenance and superior rail grinding expertise. Contact Molaton for a free consultation and sample set to experience the self-sharpening advantage firsthand.What Makes Zirconia Alumina the Preferred Grain for Premium Railway Grinder Wheels
The Science of Self-Sharpening: How Zirconia Alumina Grains Prolong Railway Grinder Wheel Life
Comparison: Zirconia Alumina vs Brown Fused Alumina vs Silicon Carbide
Property Zirconia Alumina Brown Fused Alumina Silicon Carbide Self-sharpening Yes (micro-fracture) Limited (macro-fracture) No (brittle) Hardness (Knoop) ~1,600 ~2,000 ~2,500 Toughness High Medium Low Heat generation Low Medium High Typical wheel life 39.8 km 18–22 km 12–15 km Best suited for Rail steel General metal Cast iron/non-ferrous Molaton Hot-Pressed Zirconia Alumina: The Synergy That Delivers Superior Results
Grain Retention
Controlled Bond Erosion
Porosity Optimization
Field Validation: Shuohuang Railway 20,000 km Grinding Case Study
Thermal Management: Why Zirconia Alumina Stays Cooler During Grinding
Cost-Benefit Analysis: Zirconia Alumina vs Lower-Cost Abrasive Alternatives
Cost Factor Zirconia Alumina Brown Fused Alumina Wheel unit cost Higher Lower Wheels per 100 km grinding ~2.5 ~4–5 Labor cost for wheel changes Lower (fewer changes) Higher Track possession time per 100 km Lower (fewer passes) Higher Total cost per km ground 20–35% lower Baseline Selecting the Right Zirconia Alumina Grade for Your Grinding Vehicle
Conclusion: Zirconia Alumina Is the Definitive Choice for Premium Rail Grinding

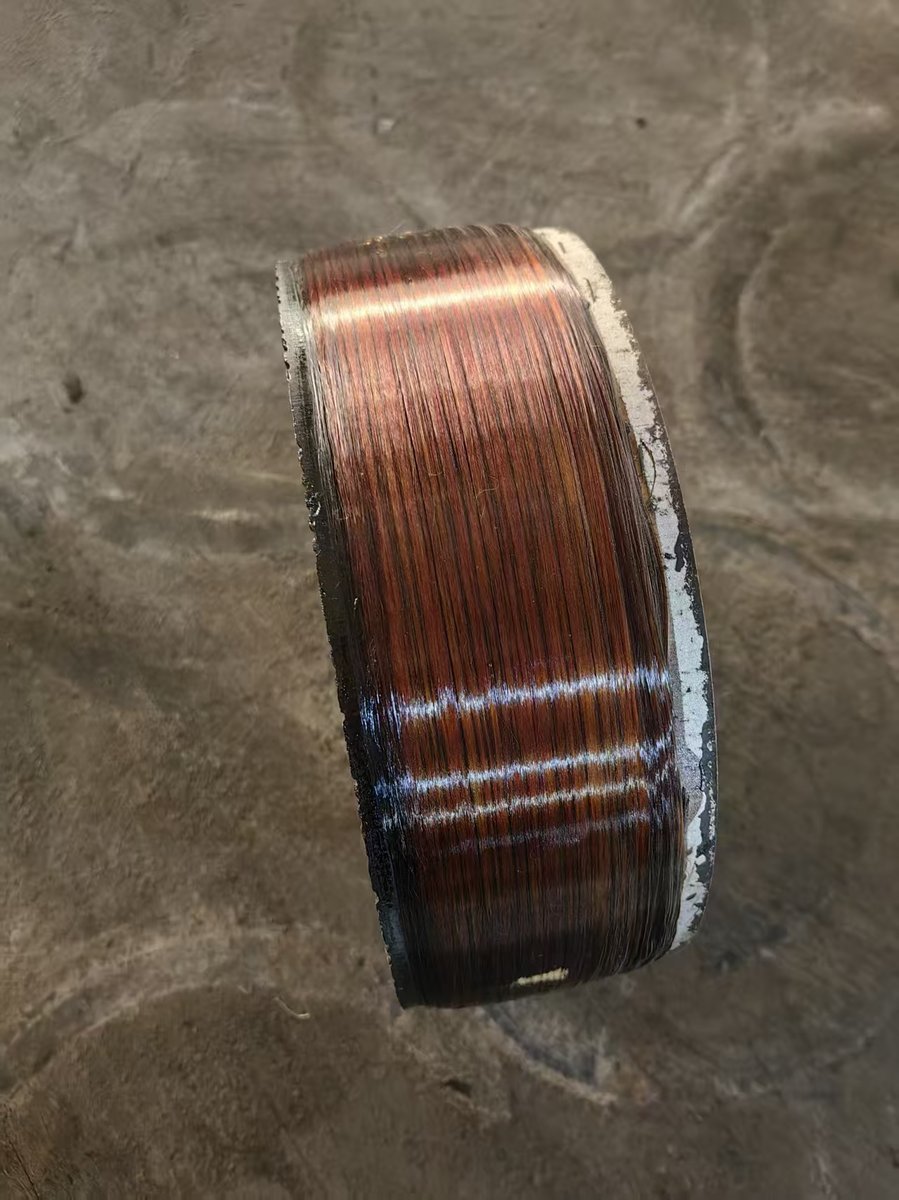

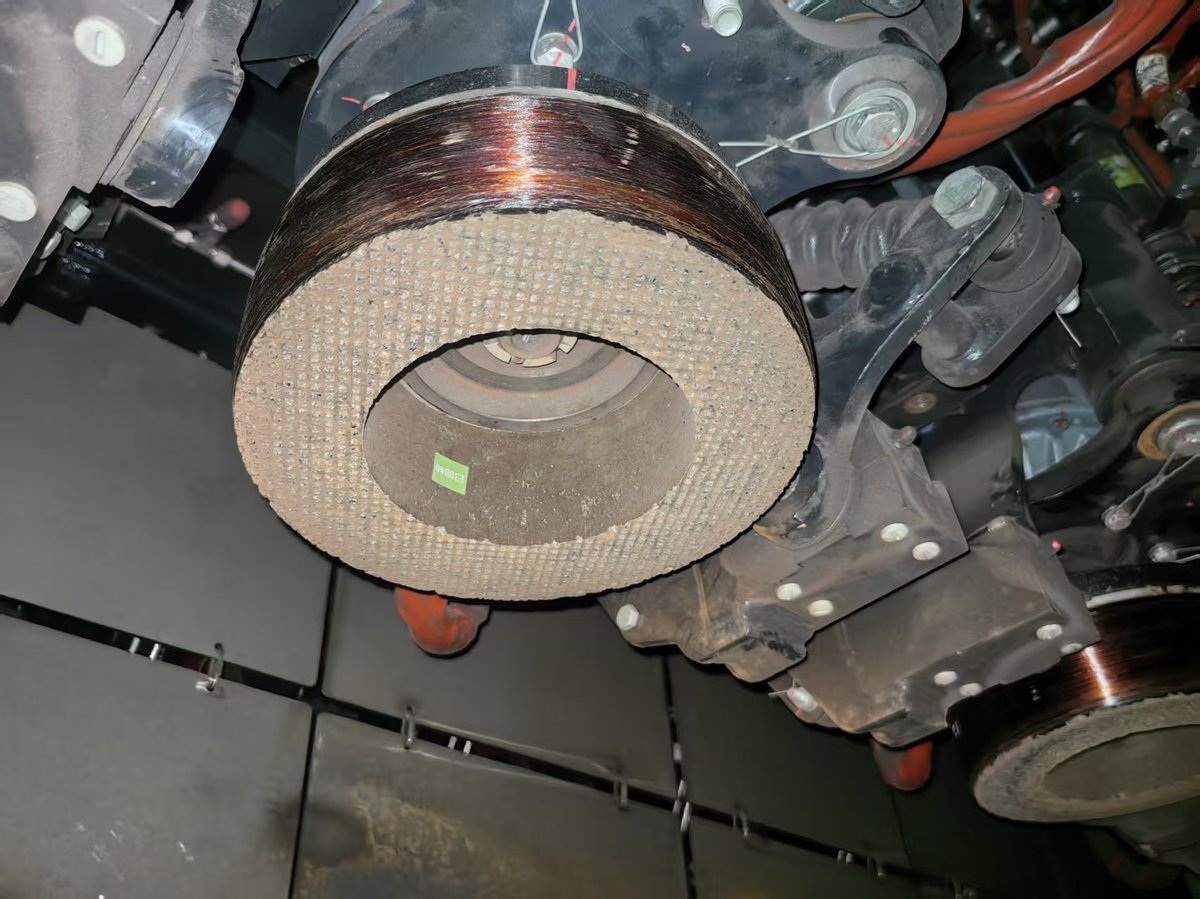

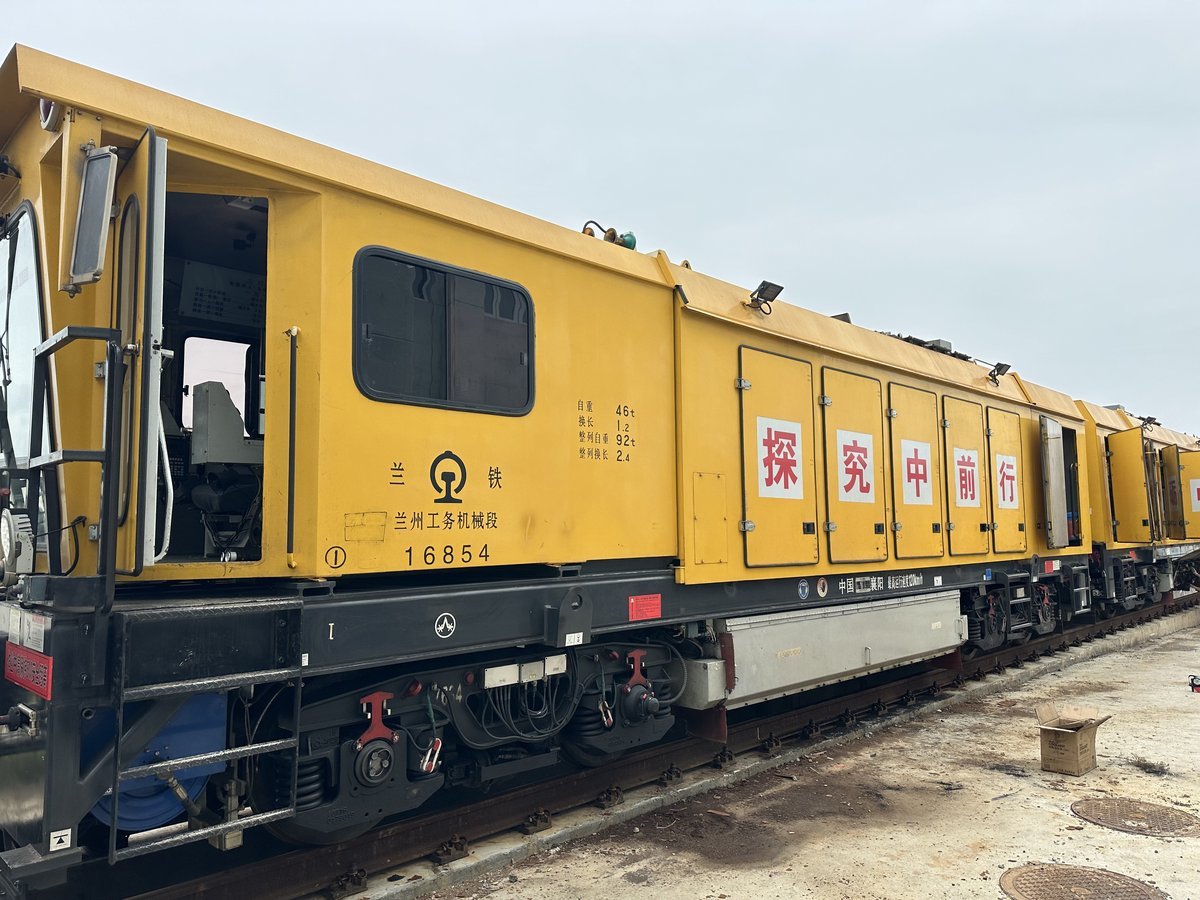

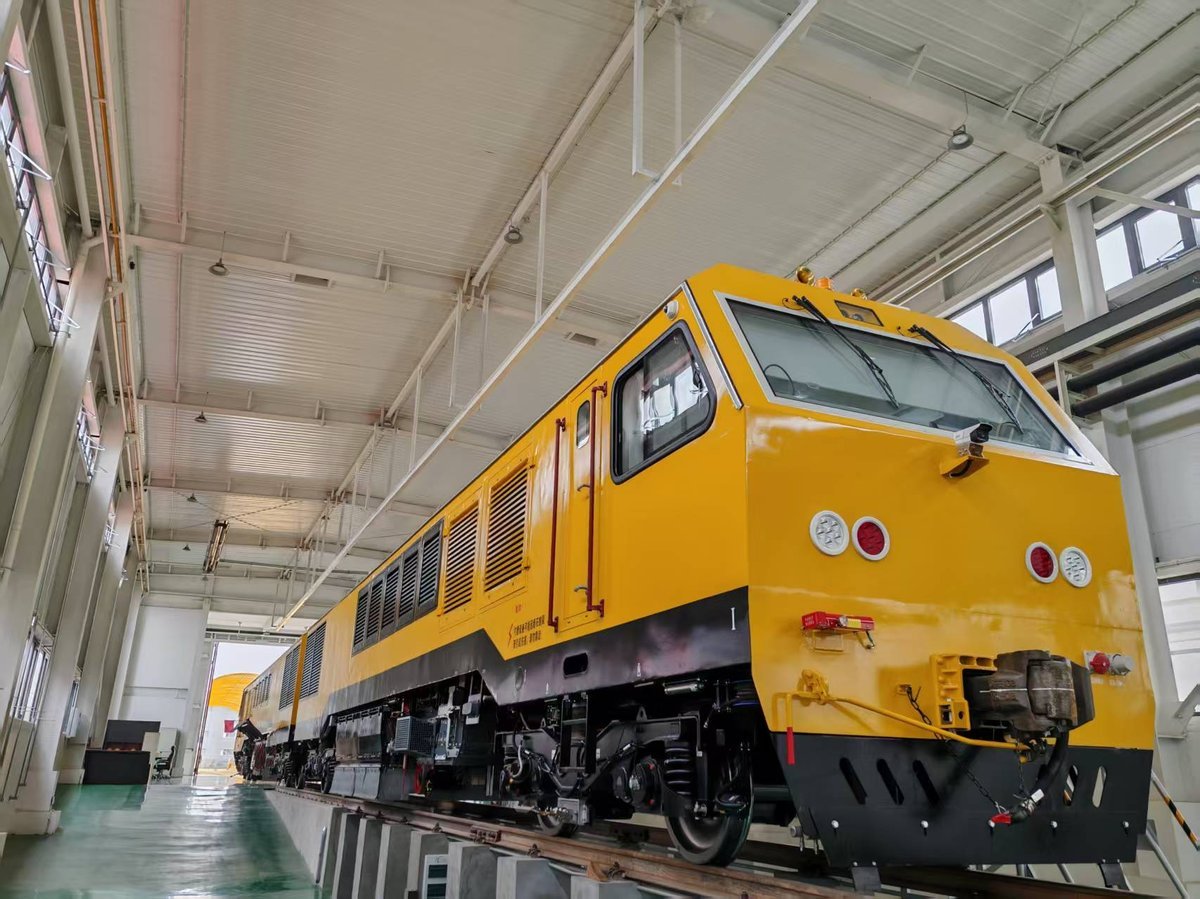

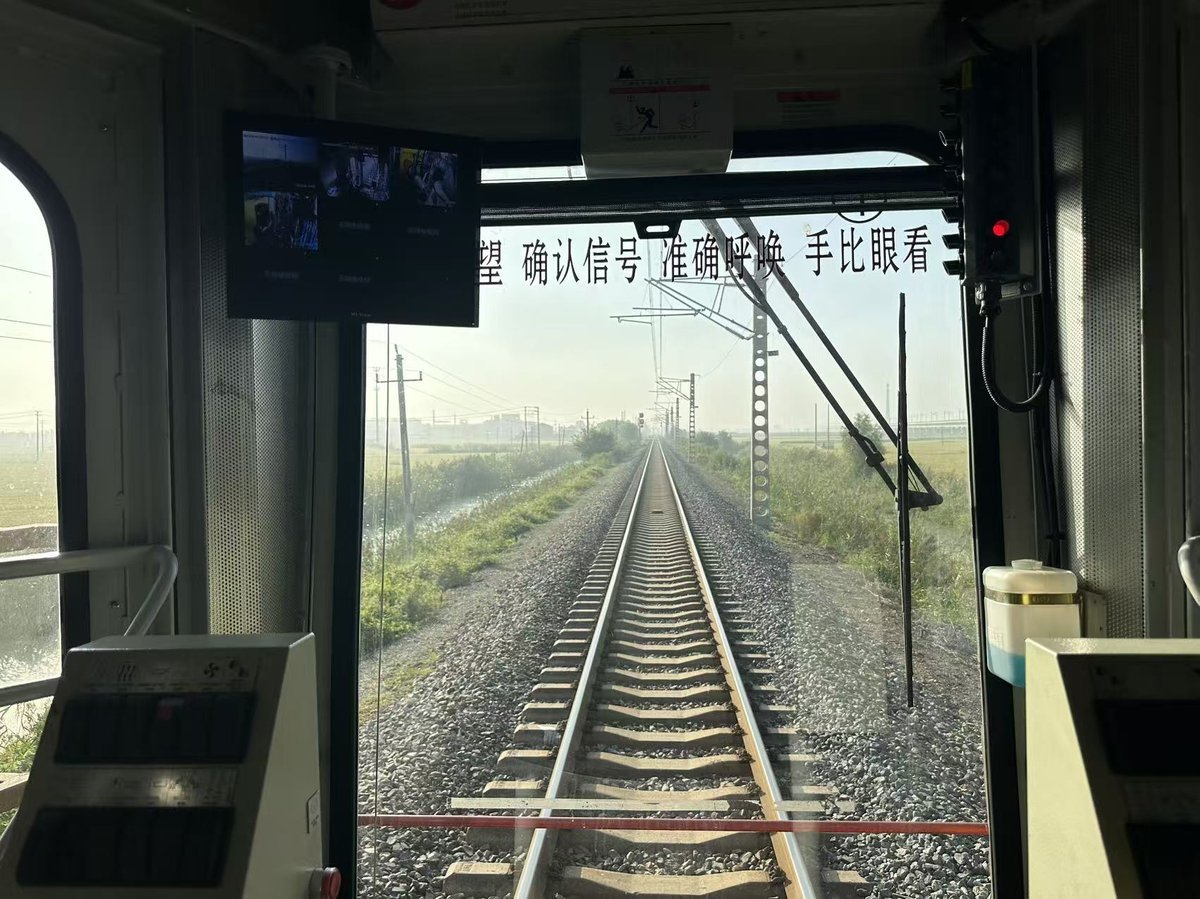

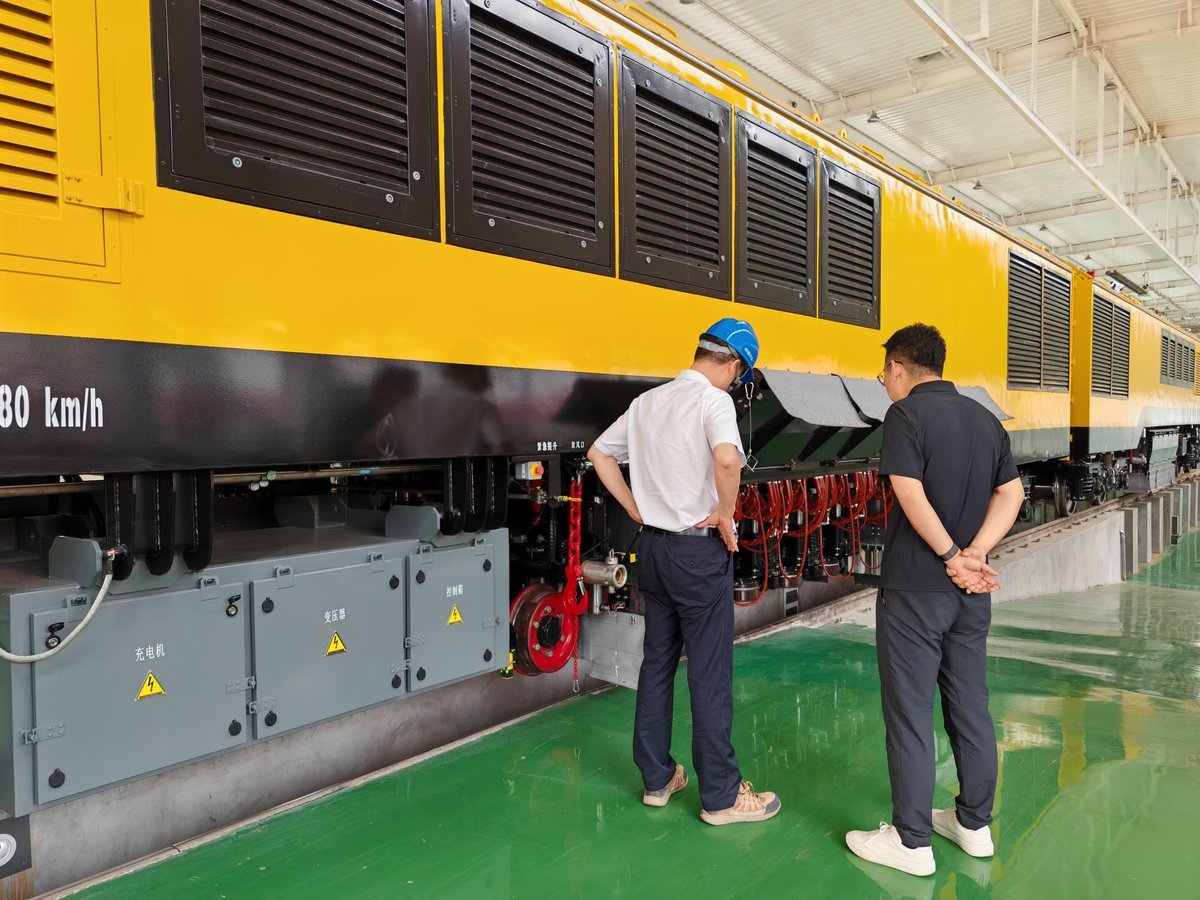

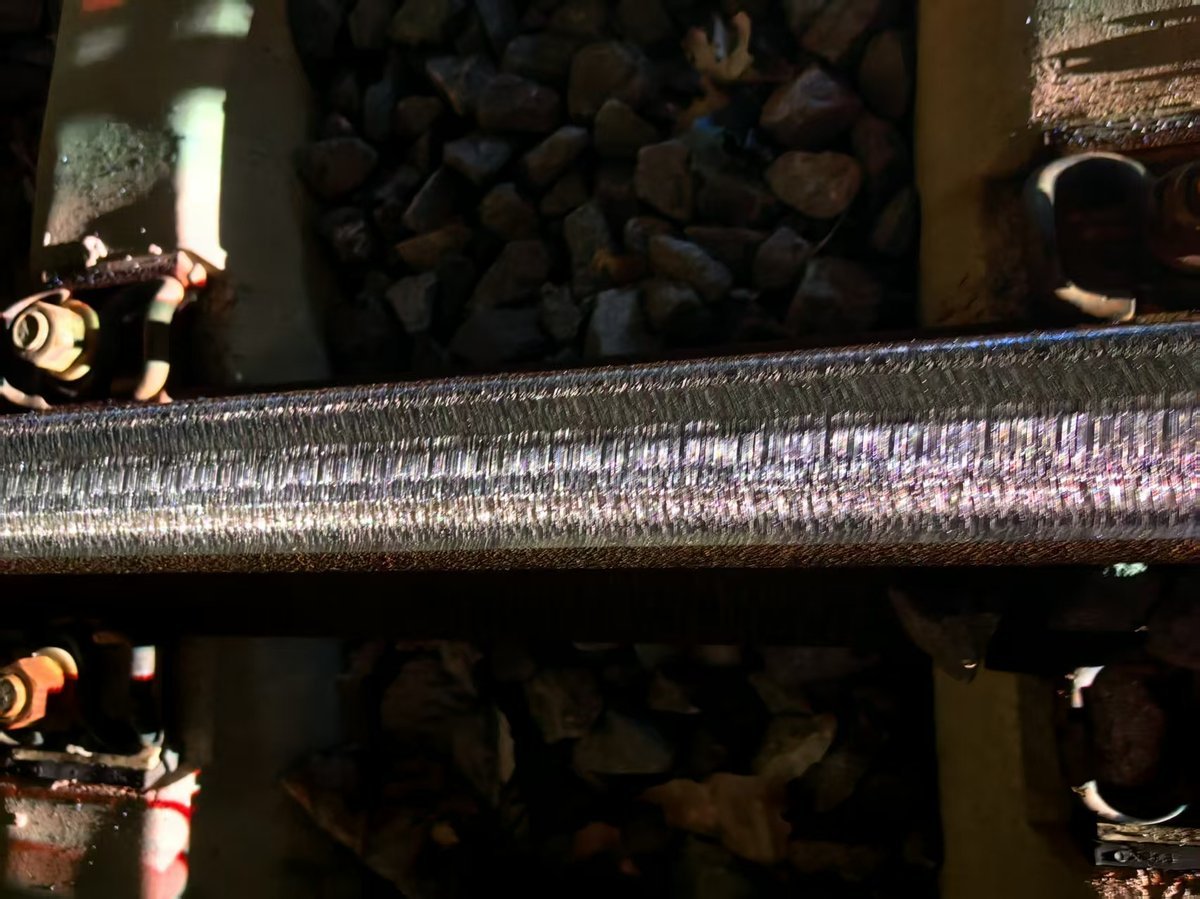

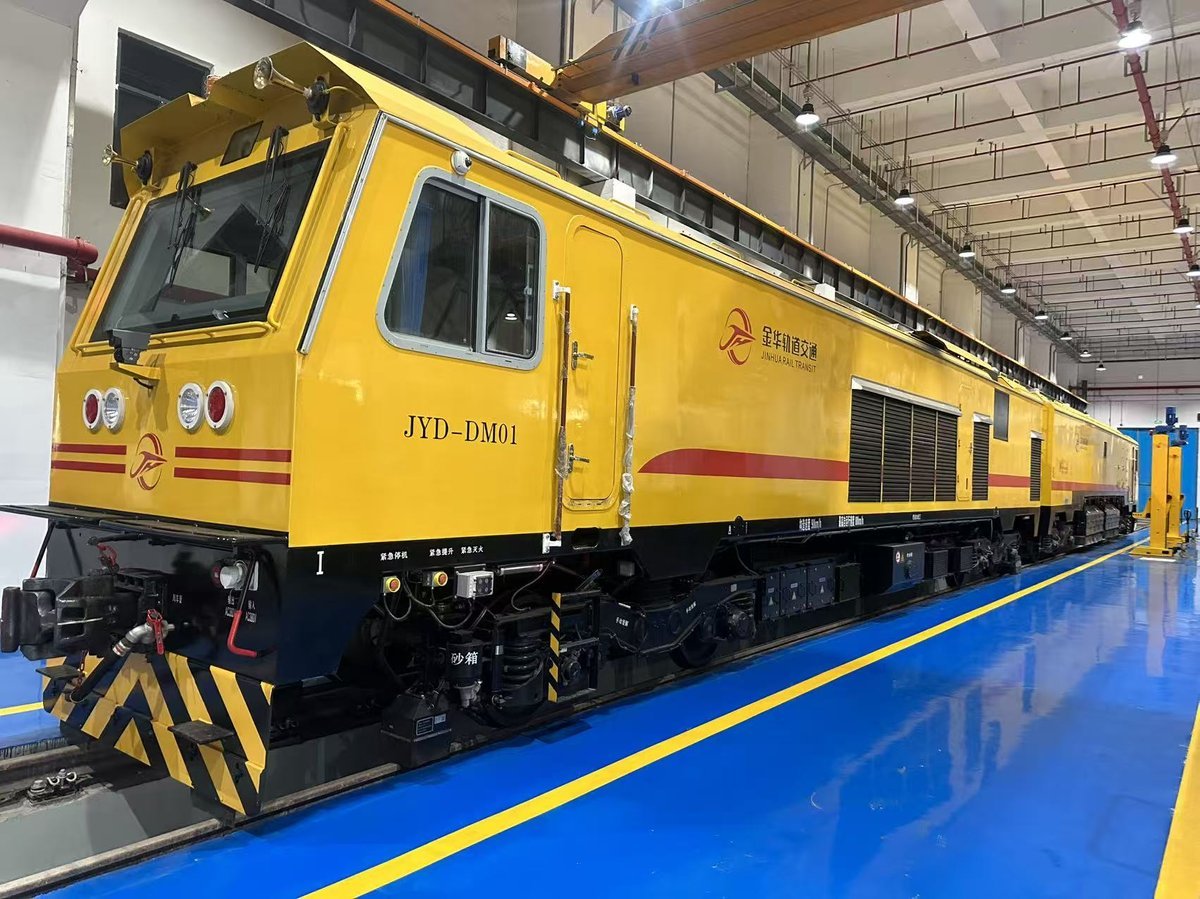

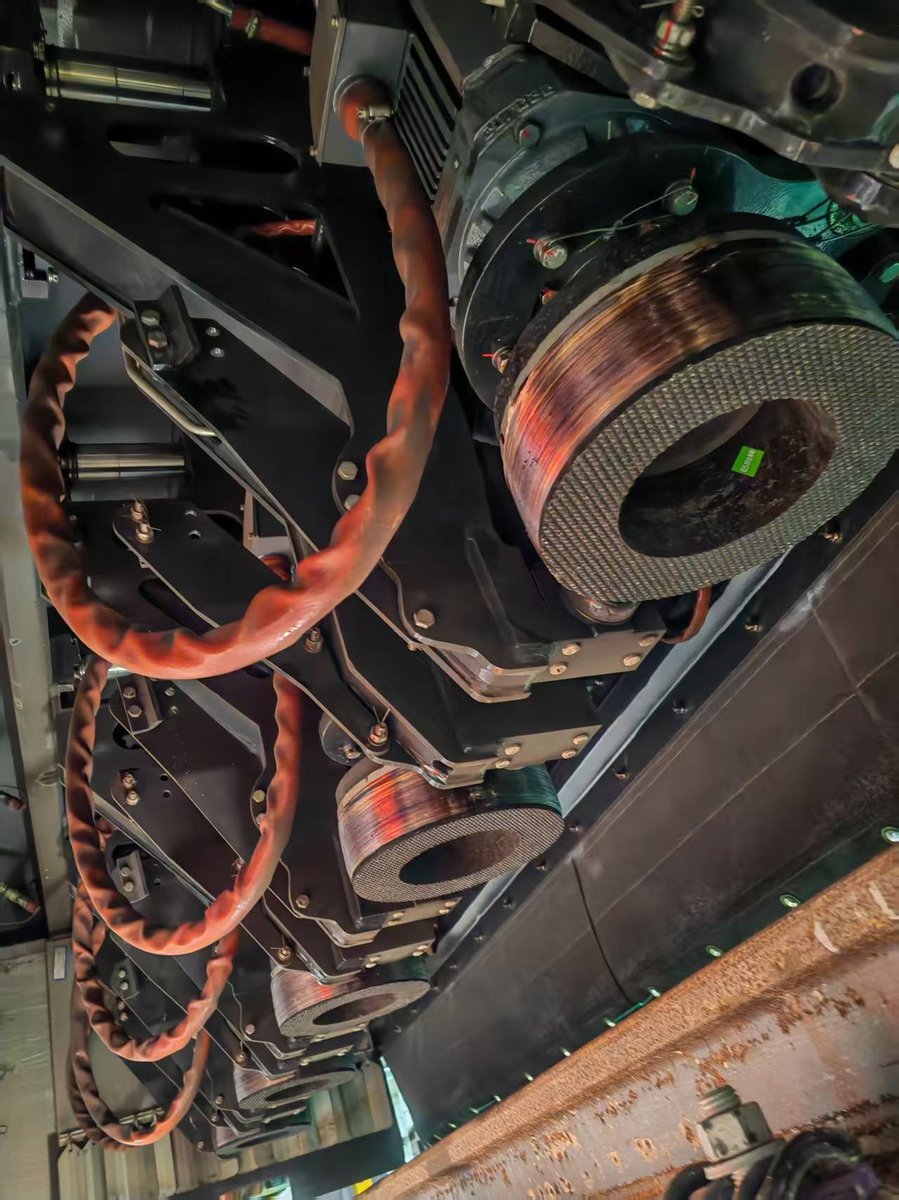

Additional Field Images: Molaton Railway Grinder Wheel in Action
