Operating Parameters of High-Speed Passive Rail Grinding

High-speed passive rail grinding is a maintenance method used for preventive rail care on mainline networks. It operates at line speeds, typically between 60 and 80 km/h, allowing work to be performed with minimal disruption to traffic.

The process relies on the friction between the moving rail and a non-driven abrasive wheel to generate the grinding action. Its effectiveness is determined by a set of interrelated operating parameters.

Core Operating Parameters of Rail Grinding

The grinding outcome is governed by three primary variables:

● 1. Operating Speed: Standard operating speed for machines like the Vossloh HSG-2 is 60 to 80 km/h. This high speed reduces the time required for track possession. However, it also increases the kinetic energy at the contact point, which raises the demand for heat dissipation from the grinding zone.

● 2. Downforce: This is the hydraulic force applied to press the grinding wheel against the rail head. On high-speed grinding trains, the downforce per wheel is generally in the range of 5 to 15 kN. Insufficient downforce leads to inadequate material removal, while excessive downforce can cause rail overheating or accelerated wheel wear.

● 3. Material Removal Rate (MRR): MRR, measured in mm³/s, defines the volume of steel removed per unit time. For preventive grinding passes, the MRR is maintained at a moderate level, typically 50 to 150 mm³/s. This setting is suitable for removing thin layers of material to address micro-defects, but is not intended for heavy stock removal.

These parameters are interdependent. A change in operating speed must be accompanied by an adjustment in downforce to maintain a stable MRR and control the thermal input to the rail.

Thermal Load Management

The primary engineering consideration is managing the heat generated at the contact patch. Excessive heat can alter the metallurgical structure of the rail, potentially reducing its service life. Two mechanisms are critical for thermal control:

● Controlled Grain Fracture: The bond system of the grinding wheel must allow abrasive grains to fracture progressively. This exposes new cutting edges and prevents the wheel face from becoming glazed, which would act as a thermal barrier.

● Heat Conduction: The design of the grinding unit and the thermal properties of the wheel body must facilitate the transfer of heat away from the rail interface.

Application Scope

Passive grinding is applied in three main scenarios:

● Pre-grinding: Conducted on new track before it enters service to remove mill scale, rust, and handling marks.

● Preventive Grinding: Performed on rails in good condition on a scheduled basis to remove surface micro-cracks and plastic deformation, preventing the initiation of rolling contact fatigue or corrugation.

● Corrective Grinding: Used to treat minor, existing surface irregularities such as early-stage corrugation.

The specific application determines the required total depth of metal removal and the MRR, which informs the choice of grinding wheel specification.

Integration with the Grinding System

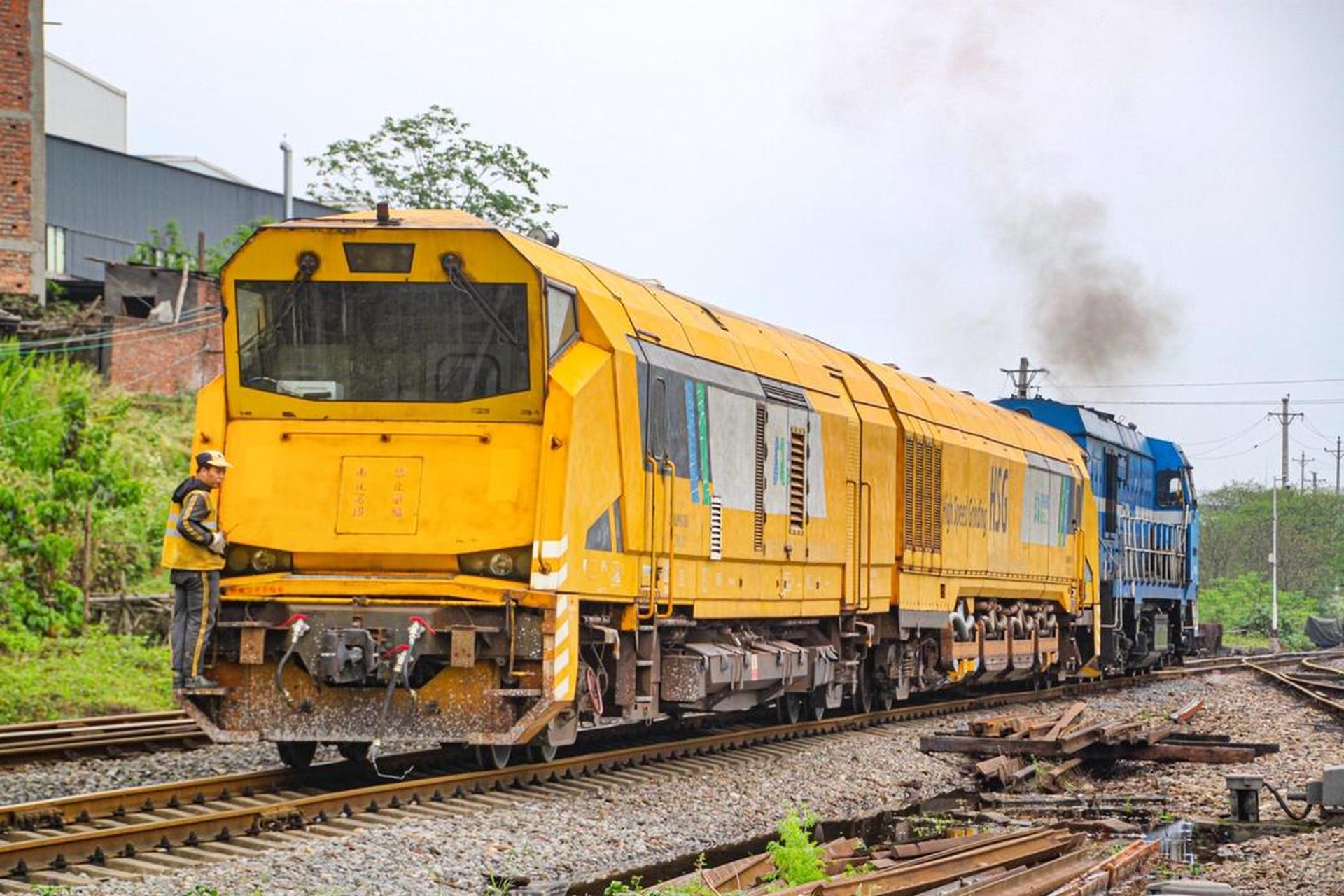

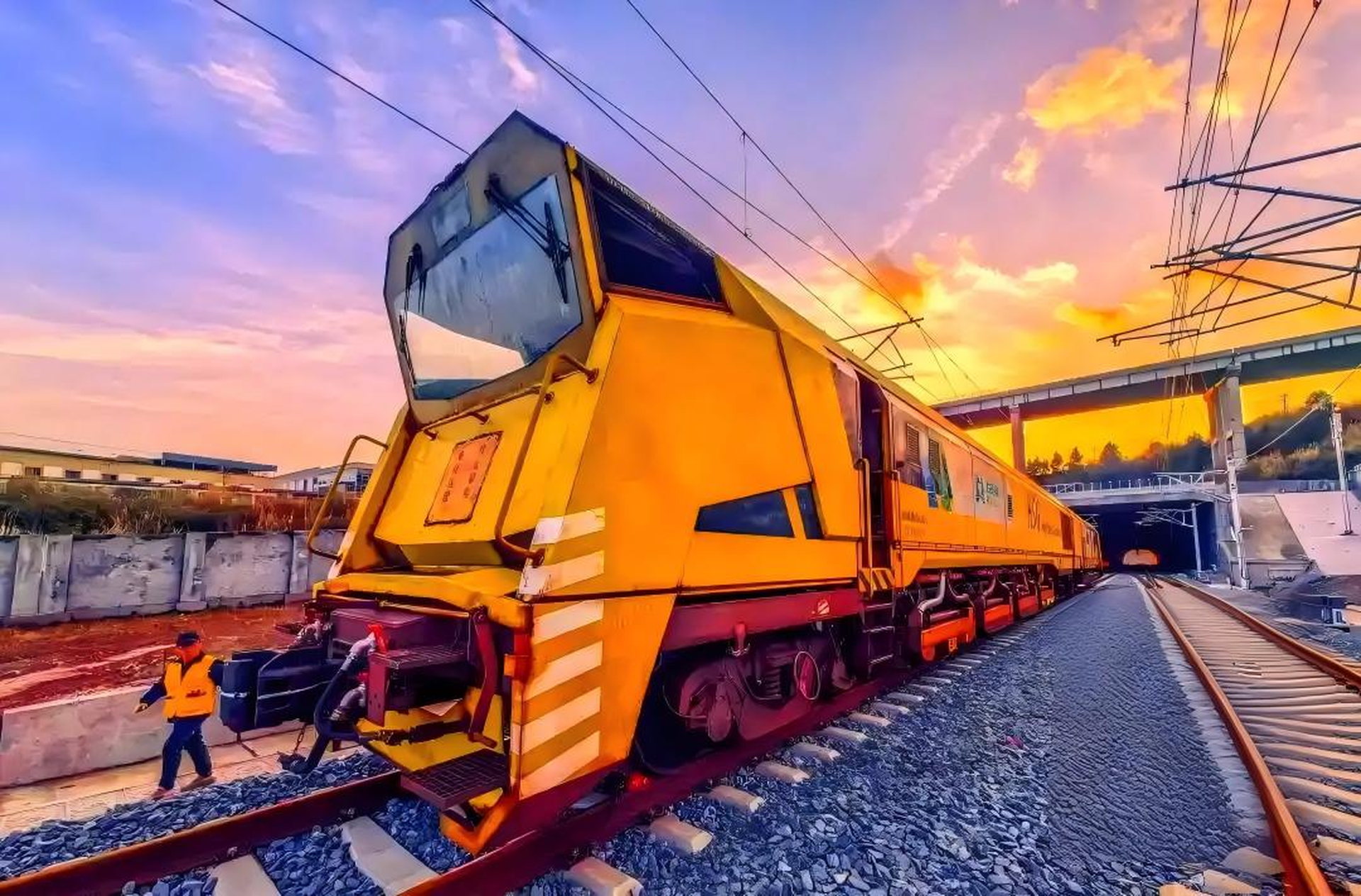

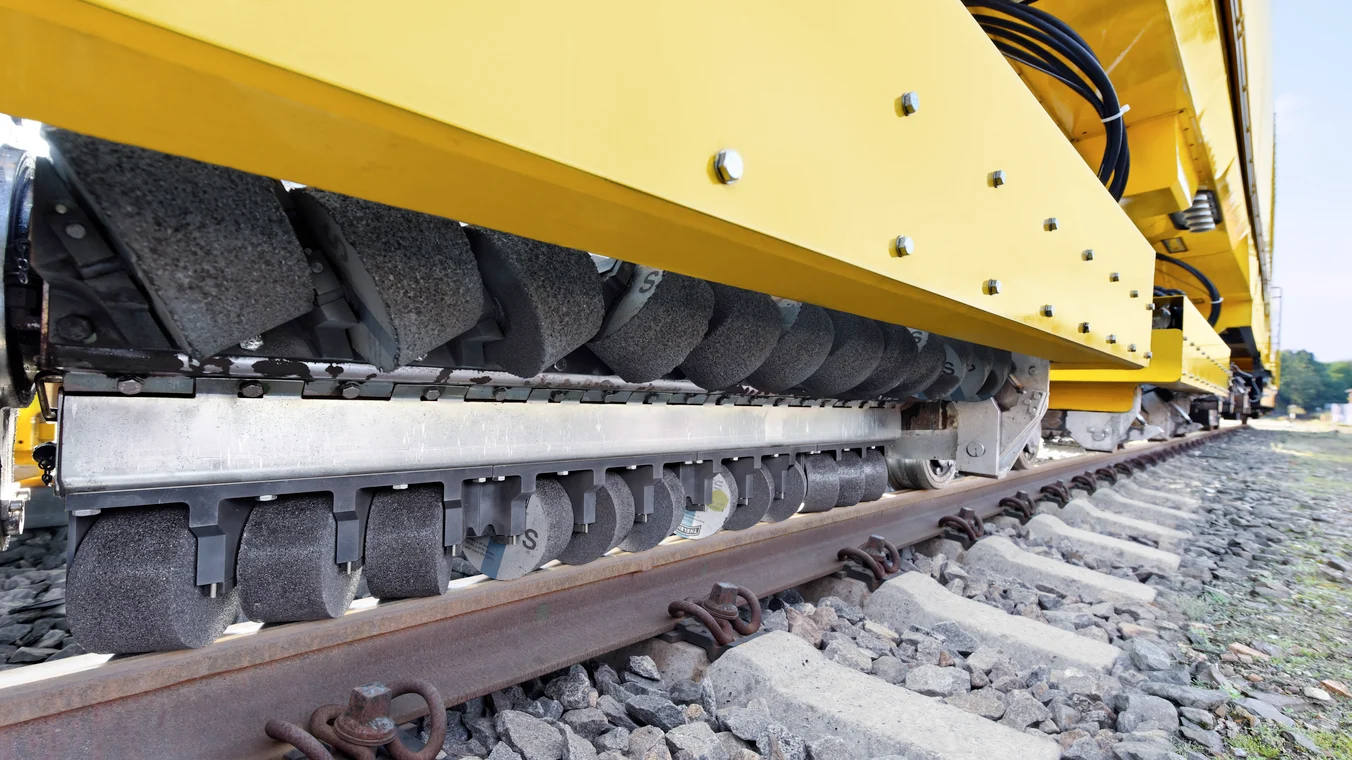

The Vossloh HSG-2 executes its preventive maintenance cycle through a defined sequence of passes. According to its standard operating procedure for networks like DB Netz AG, a complete grinding cycle consists of three sequential passes, utilizing a course / course / medium-fine grinding wheel configuration. This multi-pass strategy enables controlled material removal at operating speeds of 60–80 km/h. In this specific application, the total material removed at measurement points Y-10 and Y-20 is 0.1 mm.

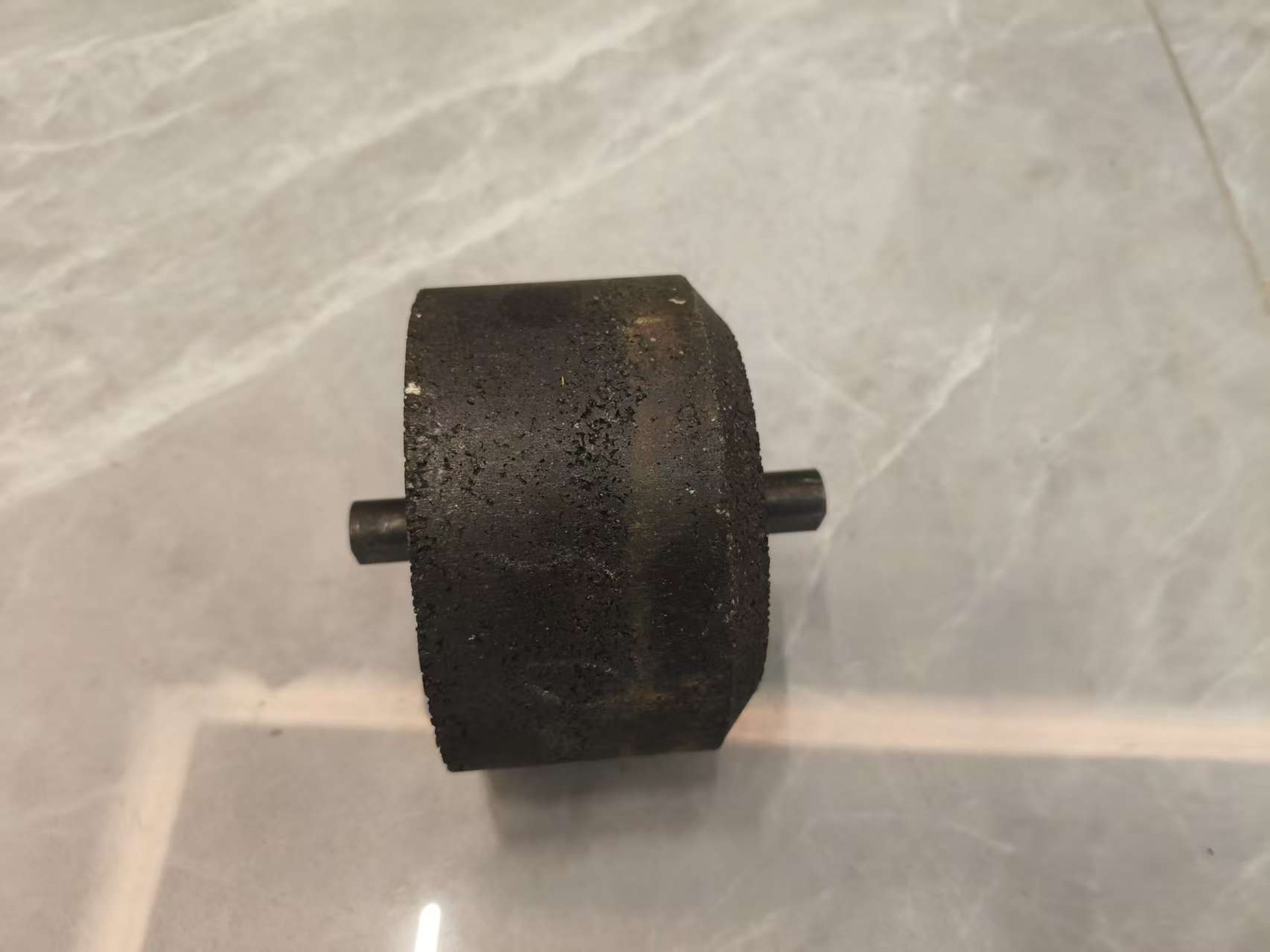

The grinding wheels are a critical part of this process. Vossloh’s official specifications confirm that their medium-fine grinding wheels for the gauge corner have a diameter of 120 mm and a width of 73 mm (Article No. 1301211). These wheels are composed of corundum abrasive, a resin bond, and filler material to achieve the required grinding characteristics and a final surface roughness of under 7μm.

Molaton RailCare-L120073 Rail Grinding Wheel for HSG-2

The Molaton RailCare-L120073 is engineered as a direct counterpart to these Vossloh-specified wheels. It replicates the key physical dimensions and utilizes a thermally stable resin bond system, ensuring compatibility with the HSG-2’s three-pass operational protocol for both coarse and medium-fine grinding stages.

Understanding and controlling these operating parameters allows maintenance teams to apply passive grinding effectively for consistent rail surface quality and extended asset life.
